Casino Slot Cabinet
Horus 荷魯斯
WECHE Gaming Cabinet — Bold Return!
Minimalist in Form, Mighty in Potential.
2 Configurations
Choose Your Configuration
43J
43J｜43" J-Curve Touch
- Dimensions
- W670 × D800 × H1973 mm
- Features
- 43-inch J-Curve PCAP touch main display (R1494 curvature); the upper cabinet accepts different monitor choices and the stand is removable with customizable height (standard 387 mm).
- Scenarios
- Premium casino zones, flagship showcase units, international trade shows.
Horus is a modular upright gaming cabinet from WECHE — minimalist in form, mighty in potential. The upper cabinet can be customized for different monitor choices, supporting a 43" J-Curve PCAP touch screen or three 27" screens, while the stand is removable with a customizable height (standard 387 mm).
Ambient LED illumination and a 2.1 sub-woofer sound system create an immersive player experience. Optional modules include ticket printer, bill acceptor, player tracking system, USB and wireless charging, push buttons and a 13.3" button deck — all configurable to your market, game platform and branding under OEM/ODM cooperation.
Features
Key Features
- ▸Modular design to apply various applications
- ▸Upper cabinet: can be customized for different monitor choice
- ▸Stand: removable and customizable height (standard height 387 mm)
- ▸Support 43" J-Curve PCAP touch screen, or 3 pieces of 27" screen
- ▸Ambient LED Illumination
- ▸2.1 Sub-woofer Sound System
- ▸Dimensions (mm): W670 × D800 × H1973
Optional Parts
Optional Modules
- ●Ticket Printer
- ●Bill Acceptor
- ●Player Tracking System
- ●USB & Wireless Charging Device
- ●Push Button & 13.3" Button Deck

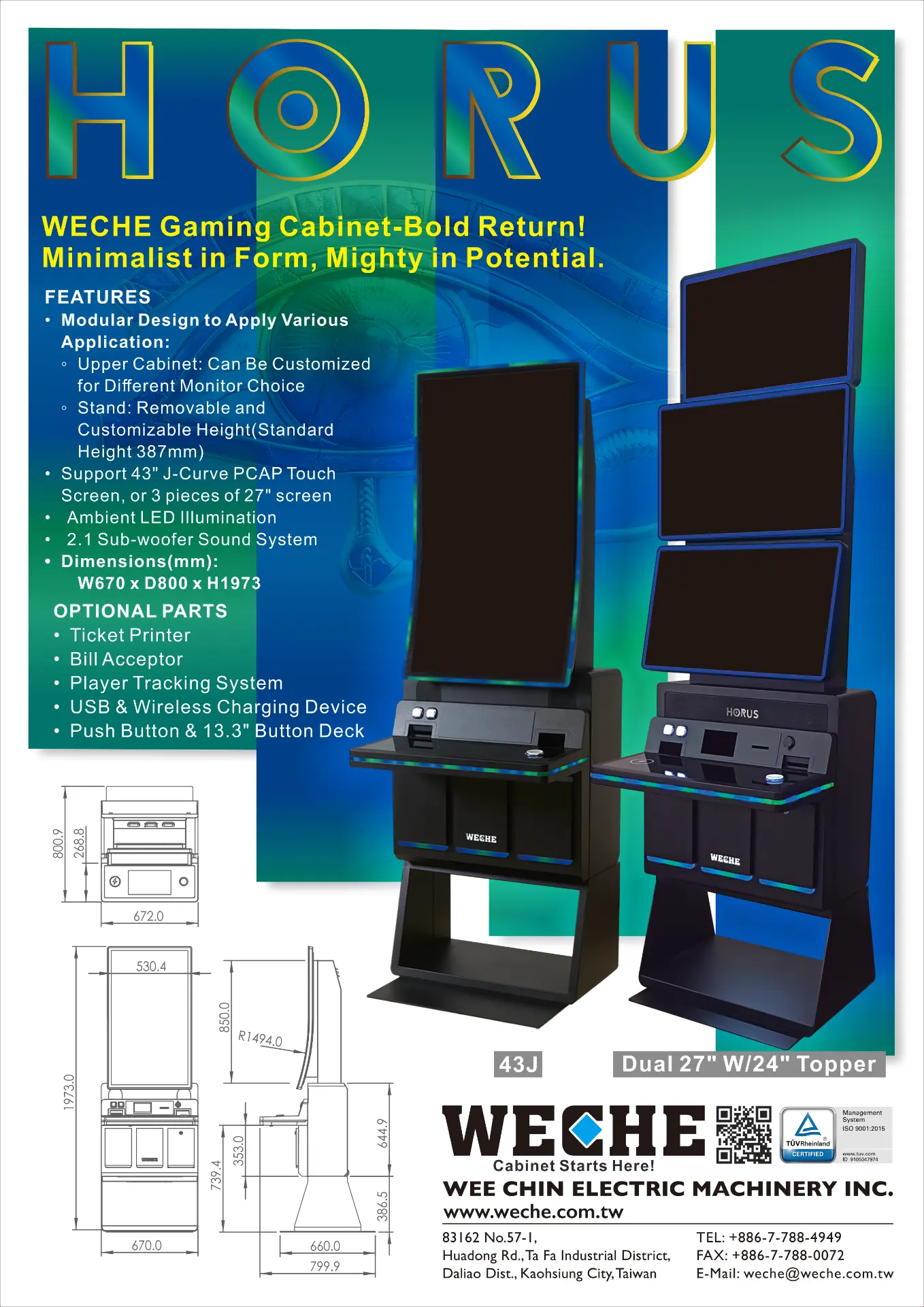

Product Catalog
Horus Catalog
Select a catalog to view full size
Reference Specs
Horus Reference Specifications
- Cabinet Type
- Upright Slot / Gaming Cabinet (modular design)
- Display
- 43" J-Curve PCAP Touch or 3 pcs of 27" screens
- Screen Curvature
- R1494 (43J curved display)
- Sound System
- 2.1 Sub-woofer Sound System
- Lighting
- Ambient LED illumination (custom colors)
- Dimensions
- W670.0 × D799.9 × H1973.0 mm
- Upper Cabinet Width
- 672.0 mm (depth 800.9 mm)
- Display Panel Width
- 530.4 mm (visible height 850.0 mm)
- Stand Height
- 386.5 mm (removable, customizable; standard 387 mm)
- Button Deck
- 13.3" button deck (optional)
- Certification
- Manufactured in an ISO 9001:2015 (TÜV Rheinland) certified factory
Specifications are for reference only; final dimensions and modules follow the customer's OEM/ODM drawings.
Application
Target Markets
- ●Casino｜賭場 / 娛樂場
- ●Electronic Gaming Venue｜電子遊戲場
- ●Cruise & Yacht Gaming｜遊艇 / 郵輪娛樂區
- ●Gaming Trade Show Display｜國際博弈展覽展示機
Services
Machine Services
- ▸Cabinet OEM / ODM Development｜機櫃 OEM / ODM 開發
- ▸Structural & Appearance Customization｜結構與外觀客製設計
- ▸Lighting, Audio & Peripheral Integration｜燈效、音響與週邊模組整合
Configure Horus for Your Market
Tell us your screen configuration, peripheral modules, and branding requirements — we'll advise on the right cabinet build for your market.
Request a Quote →FAQ
Horus — Frequently Asked Questions
A 43" J-curve display (43J) version and a dual 27" stacked-screen version.
Yes — base height, paint, lighting, button deck and peripherals such as bill validators and printers can be tailored to the game provider or venue.
Yes. WECHE's engineering team provides 3D mechanical design and drawing review, planning internal structure, airflow and cable routing around the display, button deck, bill validator and printer — with physical prototypes for hands-on validation.
WECHE operates in-house sheet metal fabrication and assembly lines with AMADA fiber laser cutting, bending, welding and powder coating equipment, handling everything from enclosure fabrication to final machine assembly.
WECHE is ISO 9001:2015 certified, with incoming material inspection, in-process checks and full functional testing before shipment — and can follow customer acceptance standards and test requirements.
Yes. Button decks, I/O interfaces and bill validator/printer positions can be pre-planned around the game provider's platform for smoother hardware/software integration.
Yes — voltage, packaging and peripheral modules can be adapted to the export market; contact WECHE sales for spare-parts supply and after-sales support.
